OVH737NG_AFT

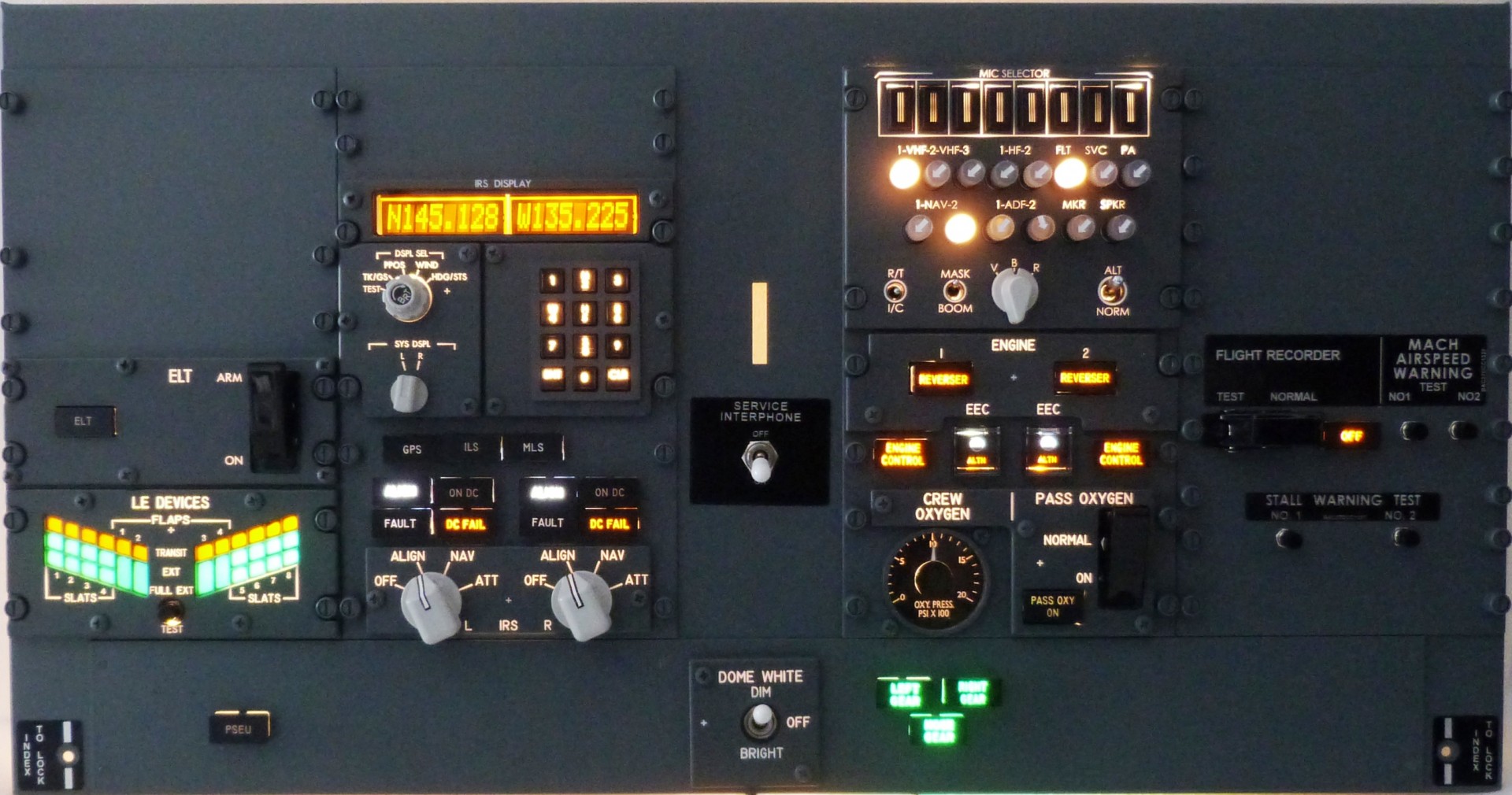

Full Scale replica of the Boeing737 OVH737NG_AFT PANEL , look and functionality are reproduced with high details.

• Custom high resolution warm white backlighting frontplate.
• The only overhead hardware with annunciators pushbutton test
• ELT, PSEU, GPS, ILS, MLS, ALIGN(2), FAULT(2), ON DC (2), DC FAIL (2), ENGINE CONTROL (2), REVERSER (2), PASS OXY ON, OFF, LEFT GEAR, RIGHT GEAR, NOSE GEAR annunciators
• Guarded EEC pushbutton

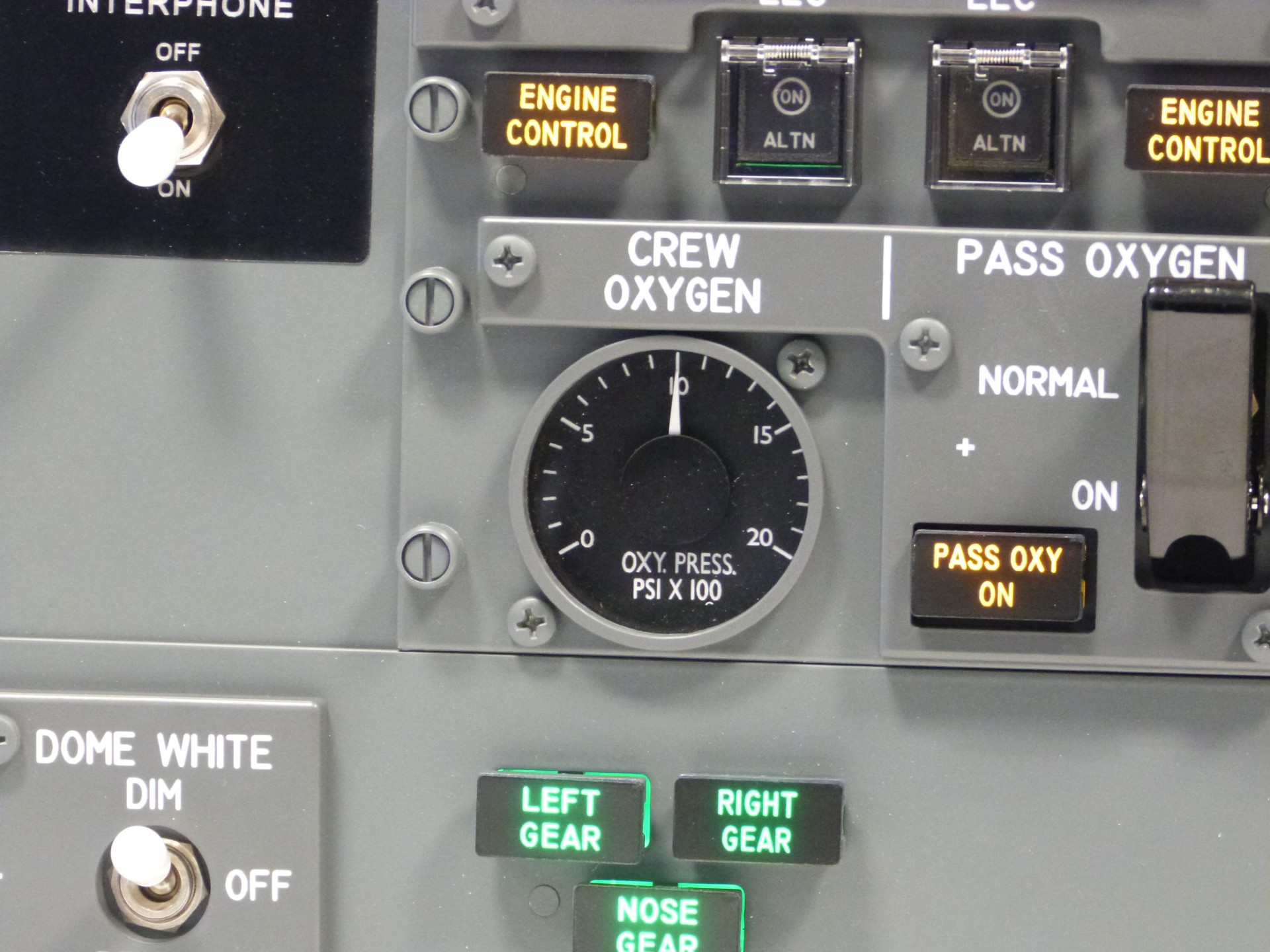

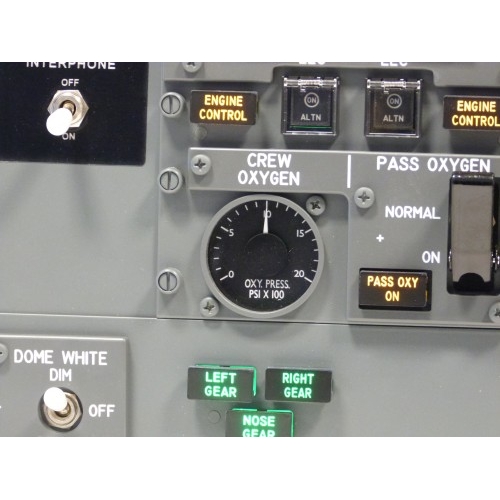

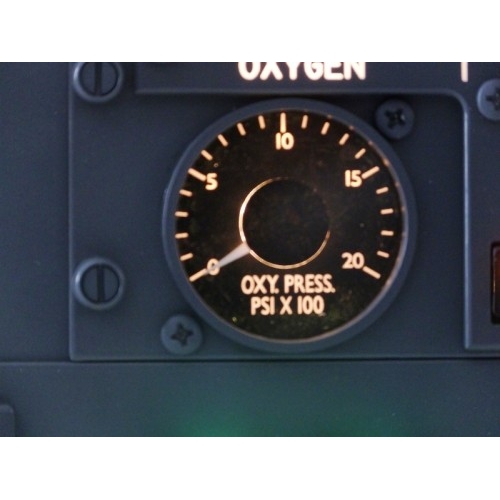

• OXY PRESS Backlighted Gauge
• IRS graphic display with brightness regulation
• Painted 1/4 Turn Original Fastners ( 16 pieces provided )
• ACP with volume regulation active on all channels
• PULL & Rotate functionality to set OFF position on IRS selectors
• Bipolar DOME WHITE switch to separately drive any other device ( LAMP ecc.... )
• Provided with a 4 pole cable for daisy chain interface with the main module ( B737 ELECTRICAL PANEL )
• Compatible with Prosim737 V3, Project Magenta, PMDG737NGX, PMDG737NGX series and iFly737
• Logics, operating modes and aircraft way of behaving are managed by the used software ( PROSIM737, Project Magenta, PMDG or iFly).

OVH737NG_AFT is intended for CPflight daisy chain connection. Does not require further driver installations, software configurations or any additional power supply.

OVH737NG_AFT PANEL is an expansion module and require B737 ELECTRICAL PANEL ( see FWD overhead ) to operate so don't use other computer's input. The ELECTRICAL PANEL performs the function of “central unit” for all the other modules that make the overhead.

OVH737NG_AFT PANEL is exclusively compatible with the OVH737NG_FWD PANEL ( Ethernet version )
