B737 ELECTRICAL PANEL

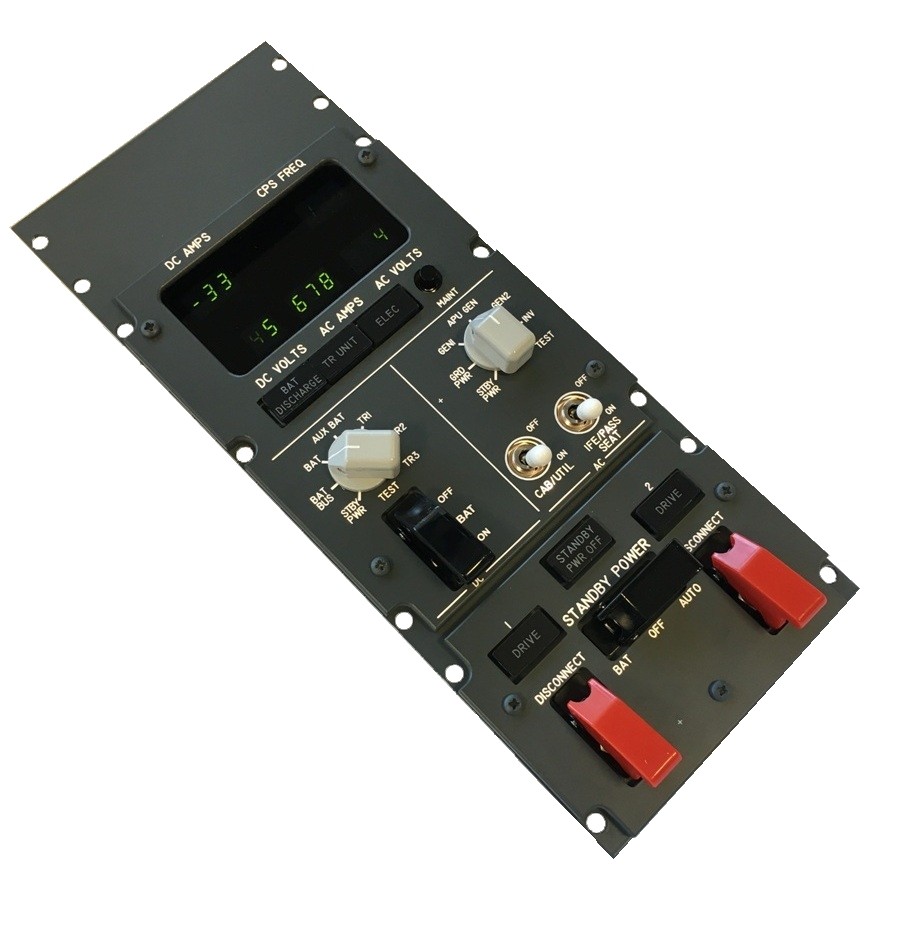

Full Scale replica of the Boeing737 ELECTRICAL Panel, look and functionality are reproduced with high details.

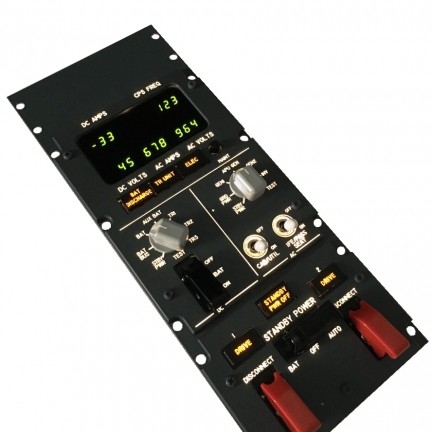

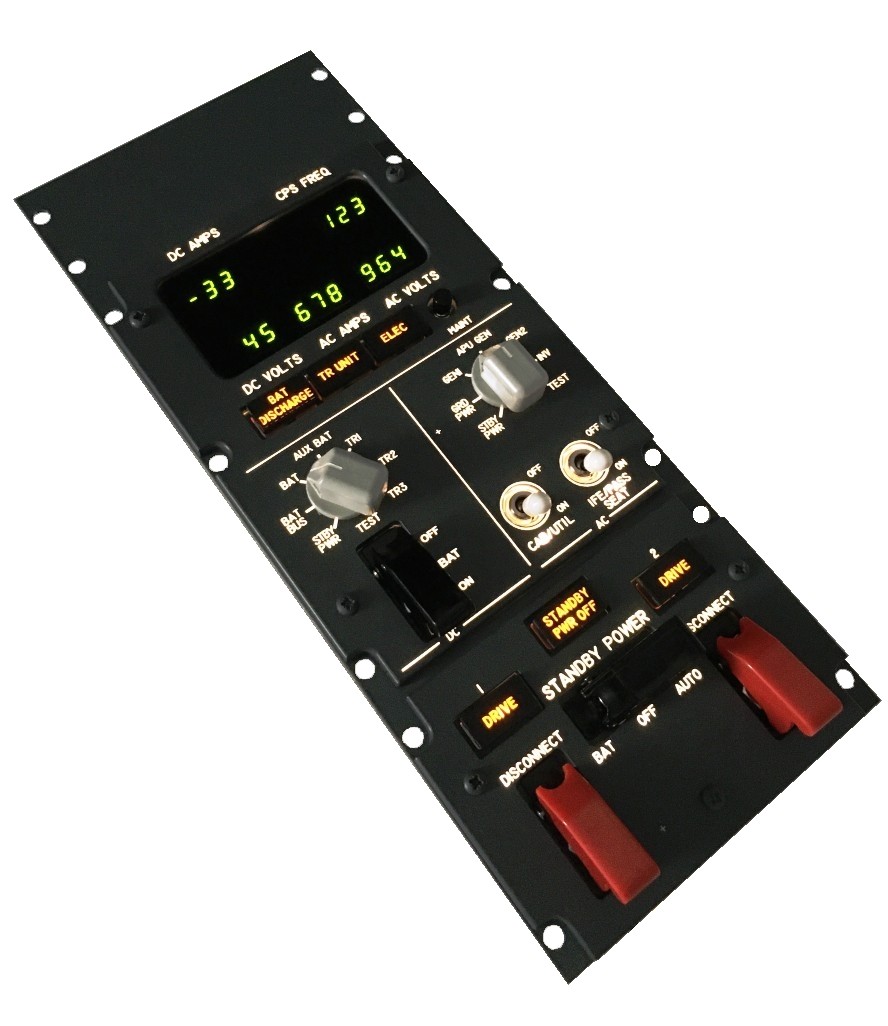

• Custom high resolution warm white backlighting frontplate.
• The only overhead hardware with annunciators pushbutton test
• BAT DISCHARGE, TR UNIT, ELEC, DRIVE 1, DRIVE 2 and STANDBY PWR OFF annunciators
• STANDBY POWER 3 position switch with black guard
• DRIVE 1 and DRIVE 2 position switches with red guard
• BAT ON/OFF switch with black guard
• CAB UTIL and IFE/PASS SEAT 2 position switches
• 7 Segment green displays for DC AMPS, CPS FREQ, DC VOLTS, AC AMPS and AC VOLTS parameter

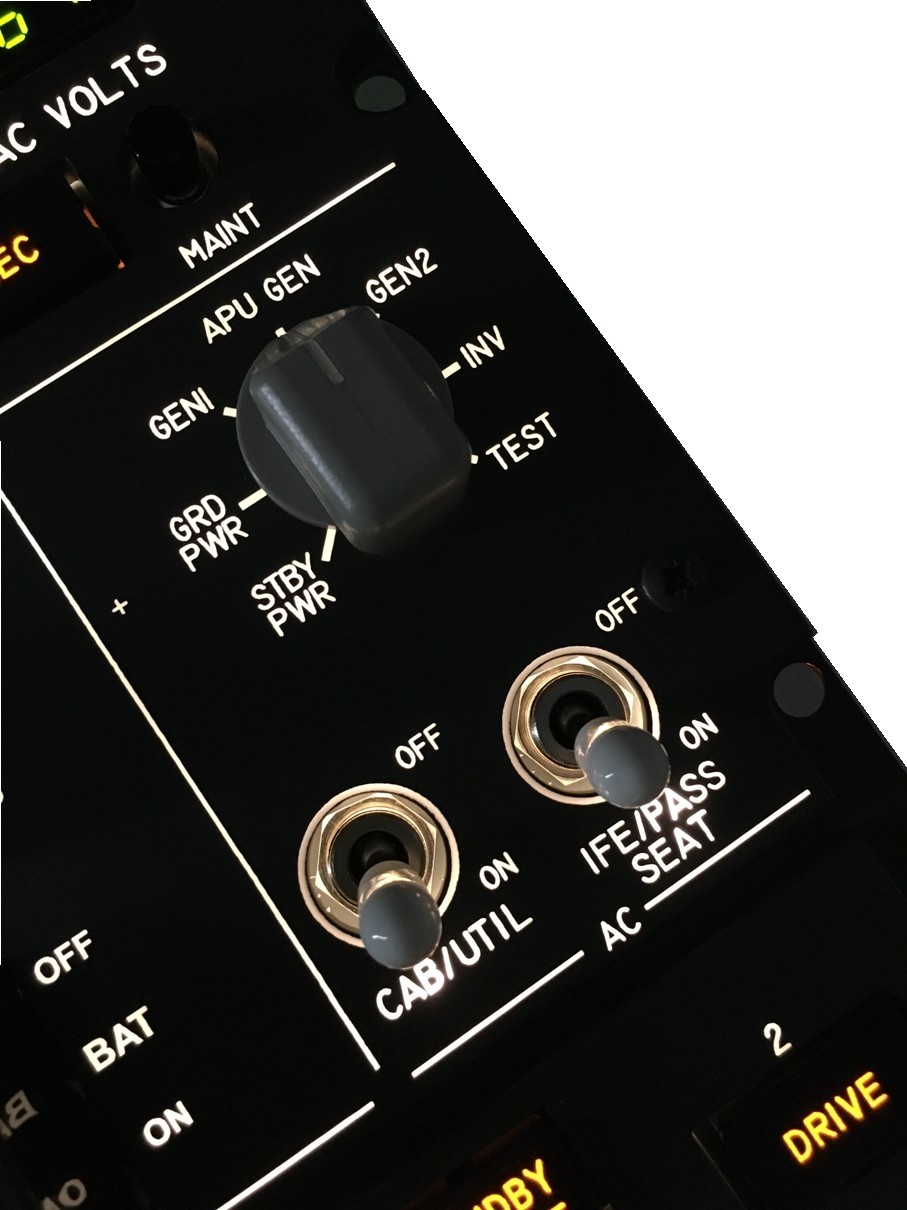

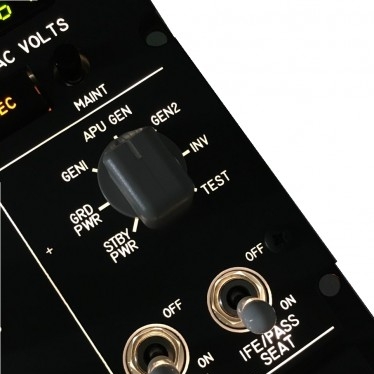

• Boeing style BACKLIGHTED knobs for DC and AC METER SELECTOR rotary switches
• Painted 1/4 Turn Original Fastners ( 14 pieces provided )

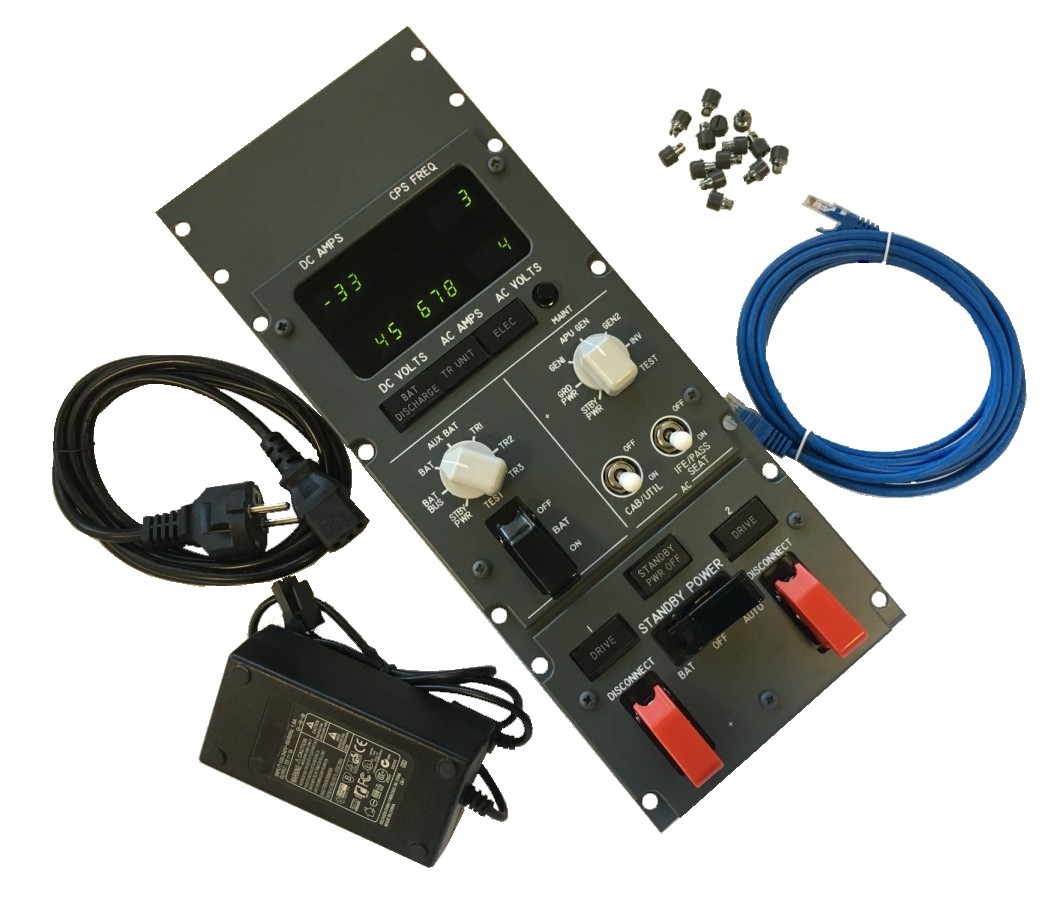

• Provided with 3mt Ethernet cable and 12VDC power supply
• Compatible with Prosim737 V3, Project Magenta, PMDG737NGX, PMDG737NGX series and iFly737
• Logics, operating modes and aircraft way of behaving are managed by the used software ( PROSIM737, Project Magenta, PMDG or iFly).

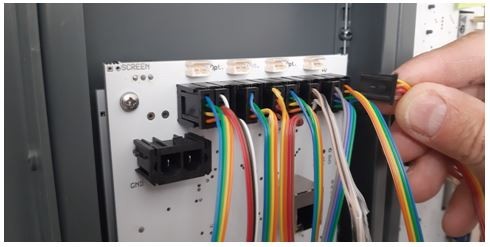

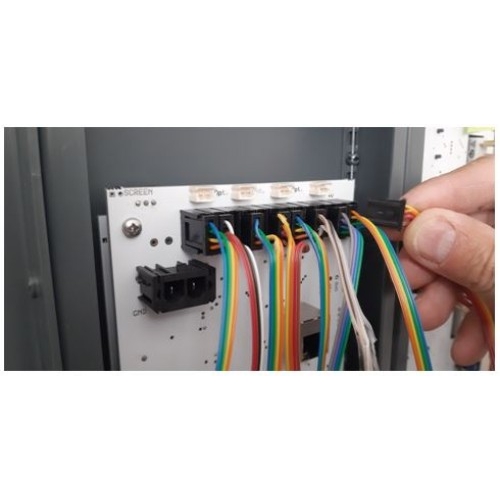

The ELECTRICAL PANEL performs the function of “central unit” of the daisy chain bus for all the other modules that make the overhead
ELECTRICAL PANEL is connected through a TCPIP protocol to the LAN.
