EFIS737EL

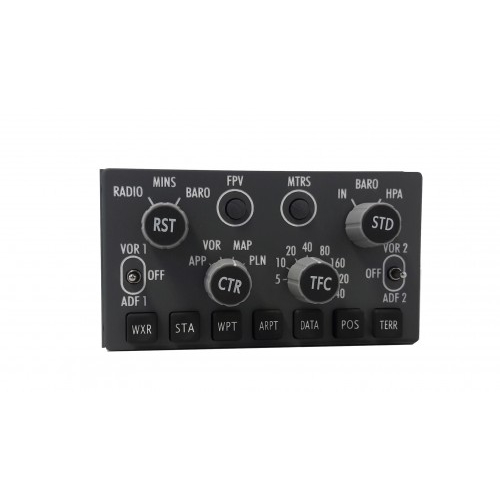

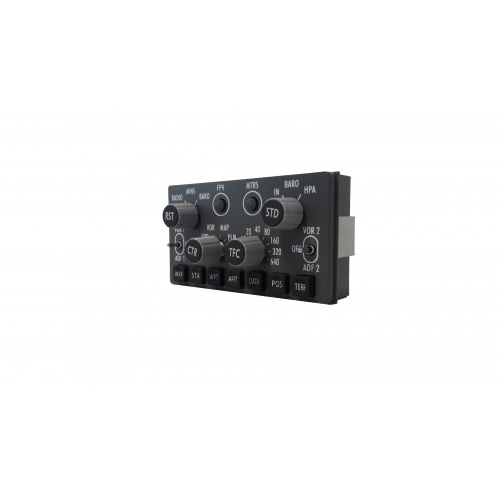

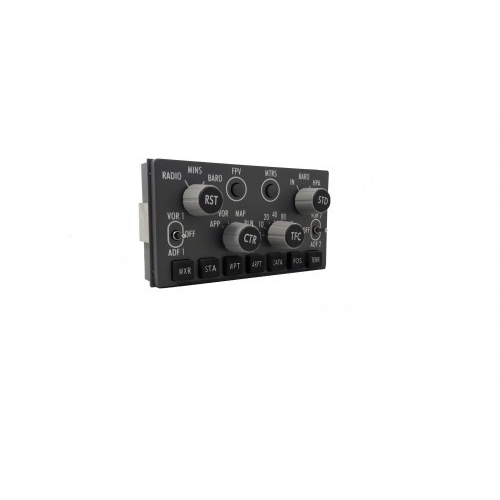

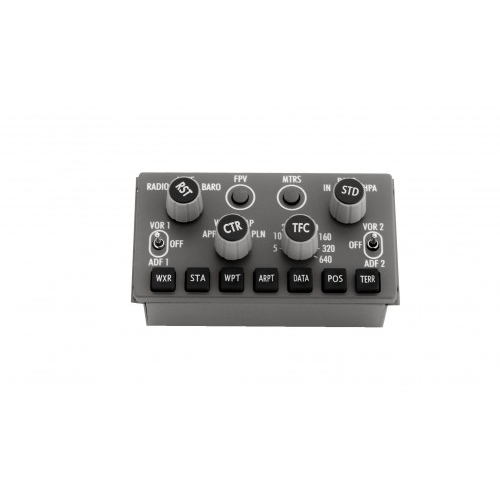

Full scale replica of Boeing EFI737 selector.

• Custom warm white backlighted frontplate.
• Custom MAP buttons with backlighted text.

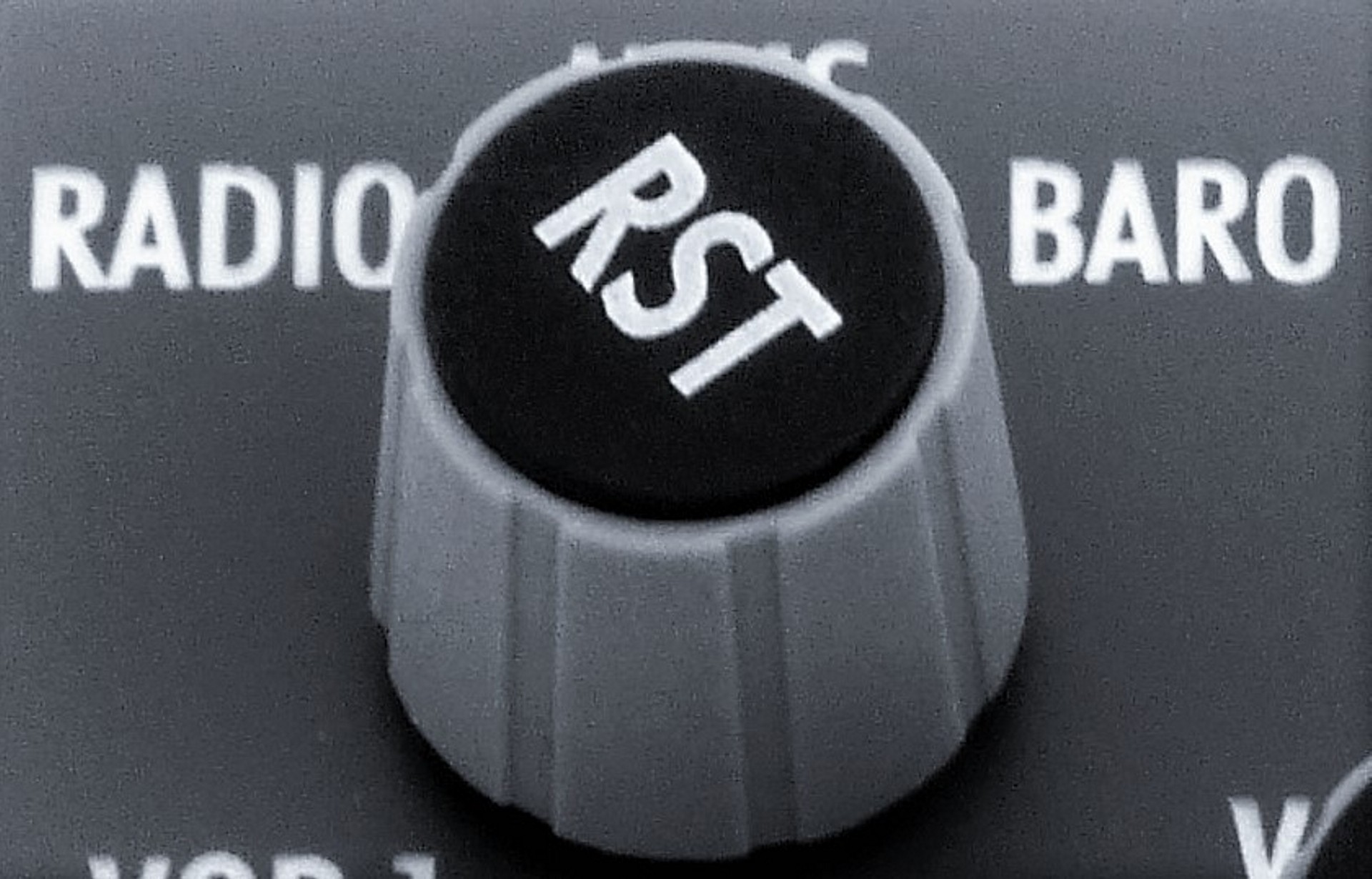

• 2 rotary encoders with push in switch for MINS and BARO adjustment.
• Knobs with printed symbols.

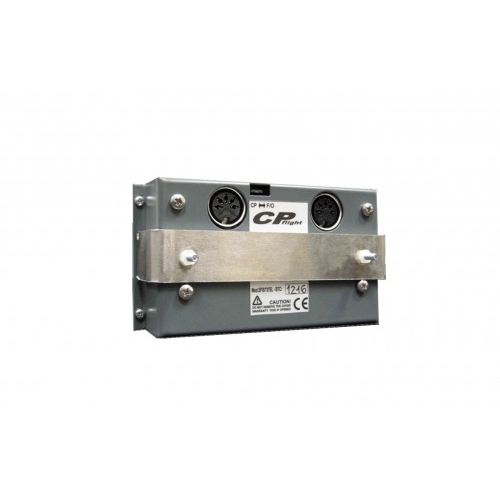

• Fixing clamp and 5 pole connection cable ( 70 cm provided ).
• RADIO/BARO and IN/HPA selection ( push and rotate simultaneously).

EFIS737EL reproduces the EFIS selector located on the Boeing 737NG cockpit glareshield. EFIS737EL is an expansion module and requires MCP737EL or MCP737PRO/PRO2 to operate. Through a jumper EFIS737EL can operate as captain or F/O selector.
It is fully compatible with Prosim737, Project Magenta, PMDG737NGX, PMDG777, Sim-Avionics, iFly737 and xPlane (x737). Due to the continue evolution of the flight simulation field we always update the compatibilities. Please check the compatibility in our "Technical and documents" section.

Why choosing us?

Our EFIS737EL connects directly to MCP737PRO/PRO2/EL in daisy-chain together with the other modules.
The MCP737 takes on charge all the connected modules, dealing the communication between them.
For this reason EFIS737EL does not require further driver installations or software configurations and does not take USB ports on the pc.
Behind the panel the thickness of our EFIS737EL is besides of 25 mm.
